24-frame Konigin honey extractor radial semi-automatic electric drive

Regular price $3,800.00

 We've been searching for a sturdy, well-made brand of extraction equipment for a while to compliment our range of cheaper units. When we saw Thorne in the UK was stocking these Polish-made Konigin units we just had to have them, because Thorne are a respected company with more than 100 years' in the industry; they even make their own extractors! So to stock a competitor's product, it must be good!

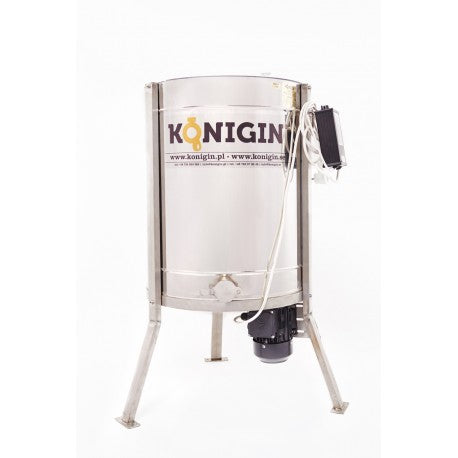

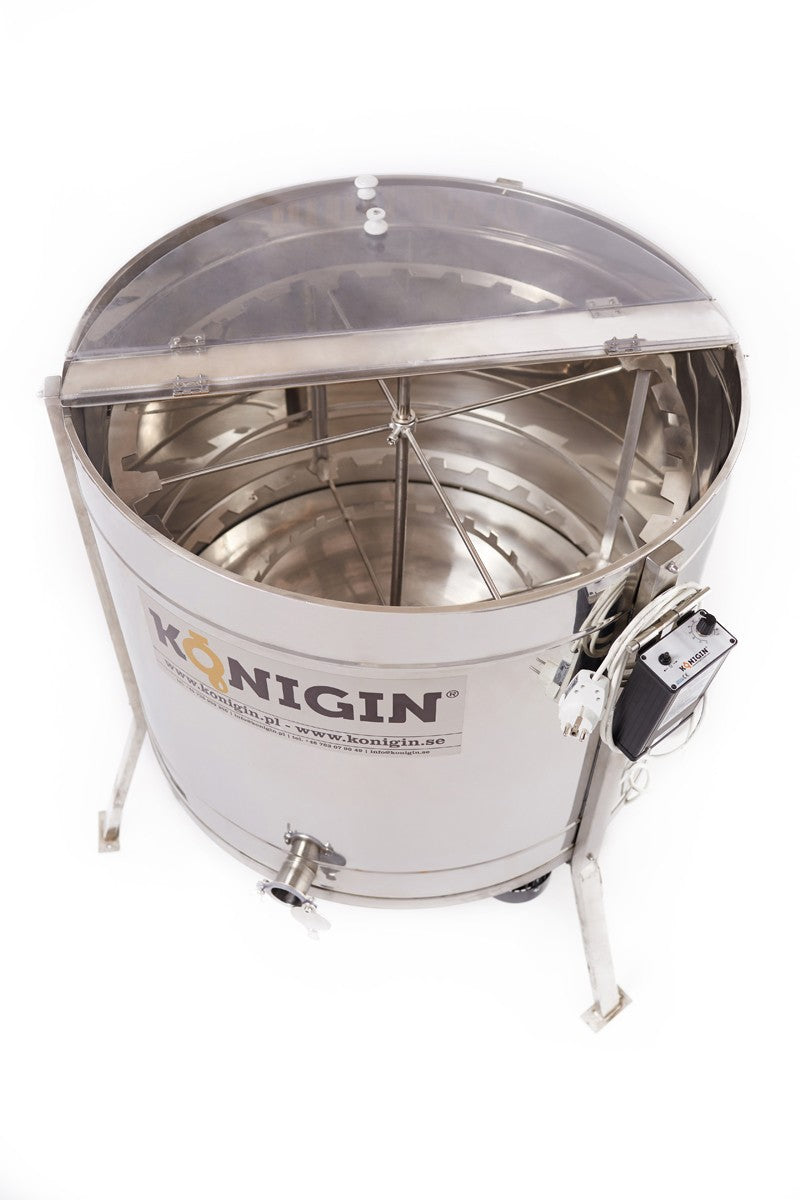

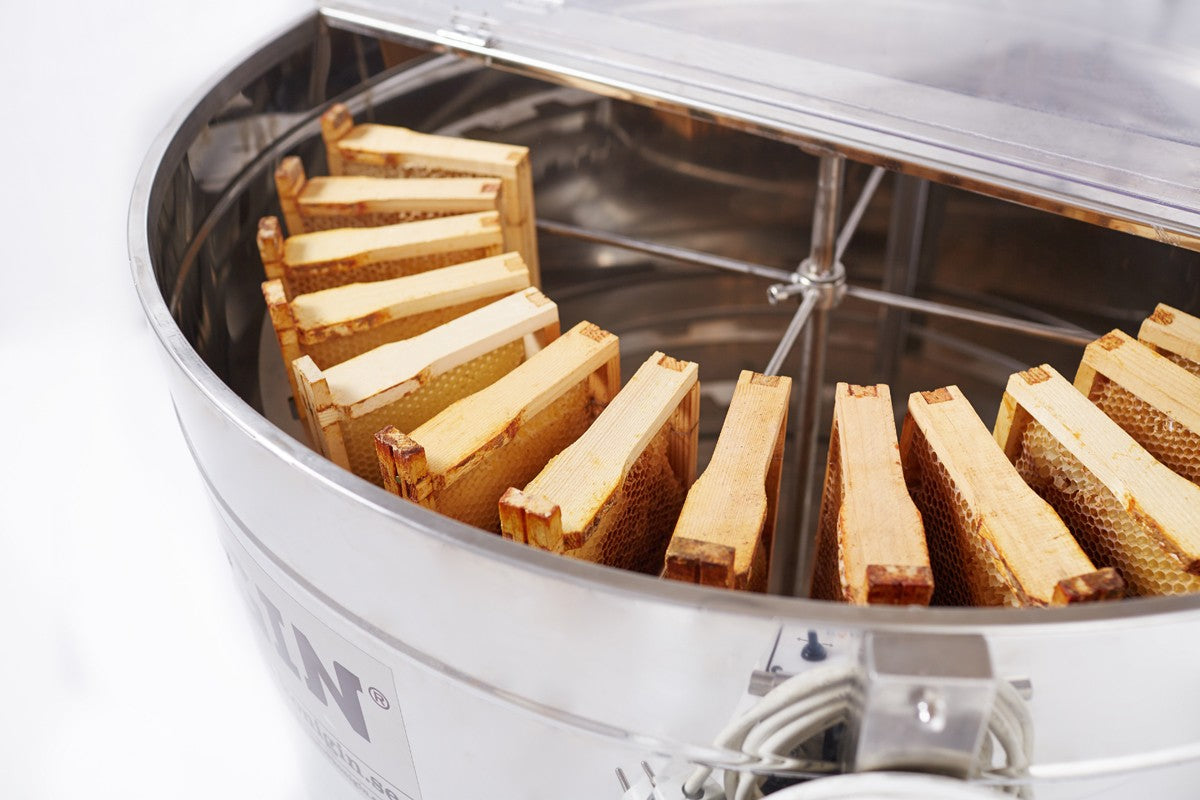

This 24 frame radial extractor features all stainless steel construction and electric drive.  Its suitable for full depth / ideal / WSP frames.

These units have a bottom mount motor, lid interlock and a fully automatic controller with manual mode.

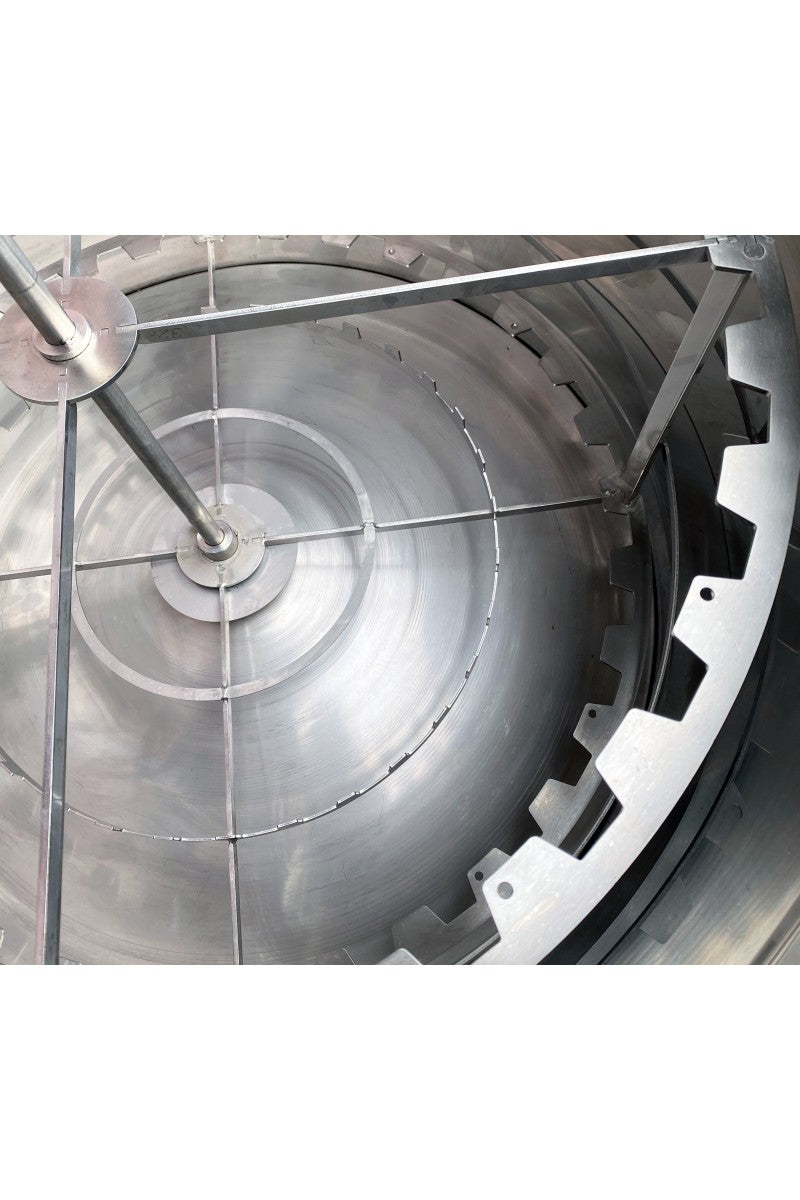

Very heavy duty stainless steel construction, laser cut basket, full drainage with the outlet level with the bottom of the drum. Variable Frequency drive bottom mounted motor with plenty of torque, self braking if the lid is opened during operation.

This is a large heavy item freight will need to be quoted and will not be charged in the checkout.

TECHNICAL DATA

DATA SHEET

Honey frame type Langstroth full depth / ideal / WBC
Size of drum Ø750 mm
Height 110 cm
Height of  gate 390 mm
Weight 40 kg
Made of Stainless steel. The machine is made entirely of stainless materials. The most commonly used corrosion-resistant material with the symbol 1.4301 / AISI 304
Stand Stainless steel, 4mm legs
Hinges Stainless steel
Drum 0.8mm thick, stainless steel acid-resistant.
Basket Frames available to turn into a tangential extractor.
Bottom Bottom is conical, made of acid resistant stainless steel, 1mm thick.
Lid Lid made of polycarbonate.
Motor and drive Electric motor, bottom drive.
Drive 230V, emergency stop
Power consumption 250W
Motor rotations per minute 2.780
Honey basket rotations per minute Max. 400

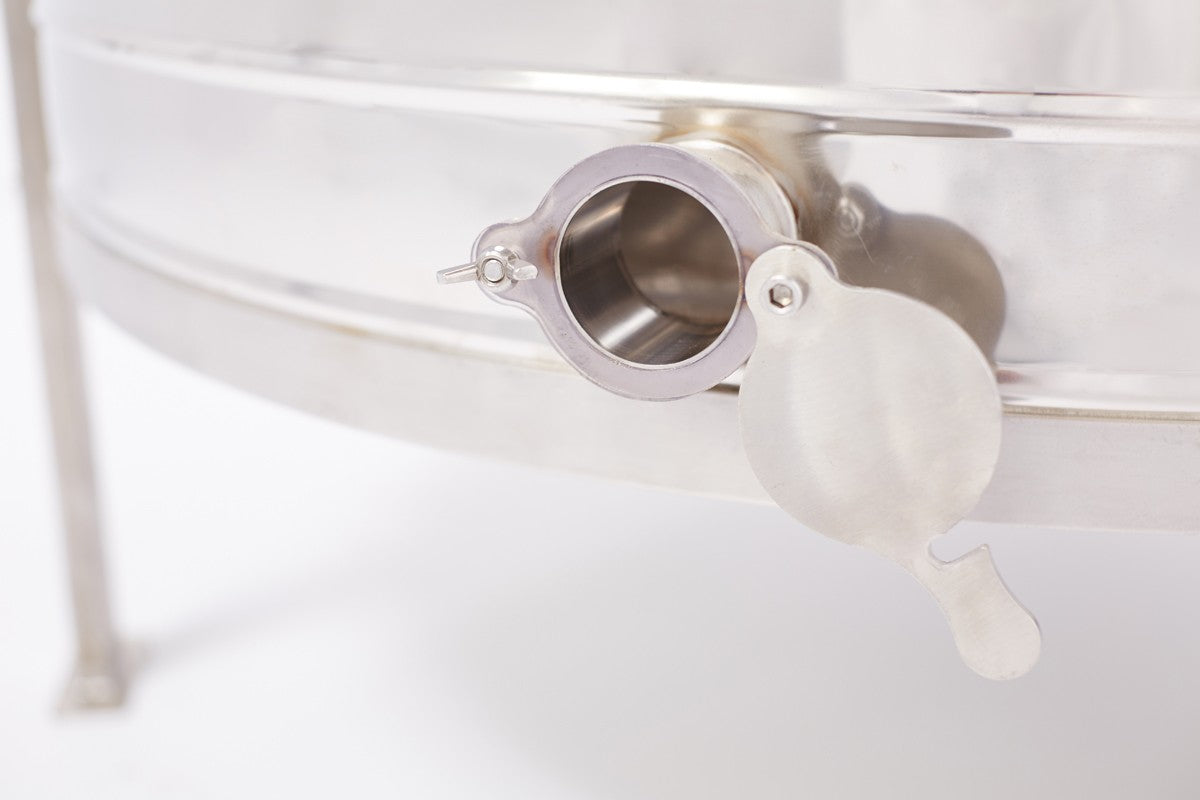

Honey extractor valve Stainless steel 5/4
Controller Controller (direction left and right) operated manually speed controller with automatic modes.
Guarantee 2 years
Shipment Pallet shipping 100.00 x 120.00 x 120.00 cm @ 45.00 kg
