20 frame Königin honey extractor radial semi-automatic electric drive

Only 1 left
SKU: 82-20-RG
$3,080.00 inc. GST
Sale $3,520.00 $3,080.00 inc. GST

 We've been searching for a sturdy, well-made brand of extraction equipment for a while to compliment our range of cheaper units. When we saw Thorne in the UK was stocking these Polish-made Konigin units we just had to have them, because Thorne are a respected company with more than 100 years' in the industry; they even make their own extractors! So to stock a competitor's product, it must be good!

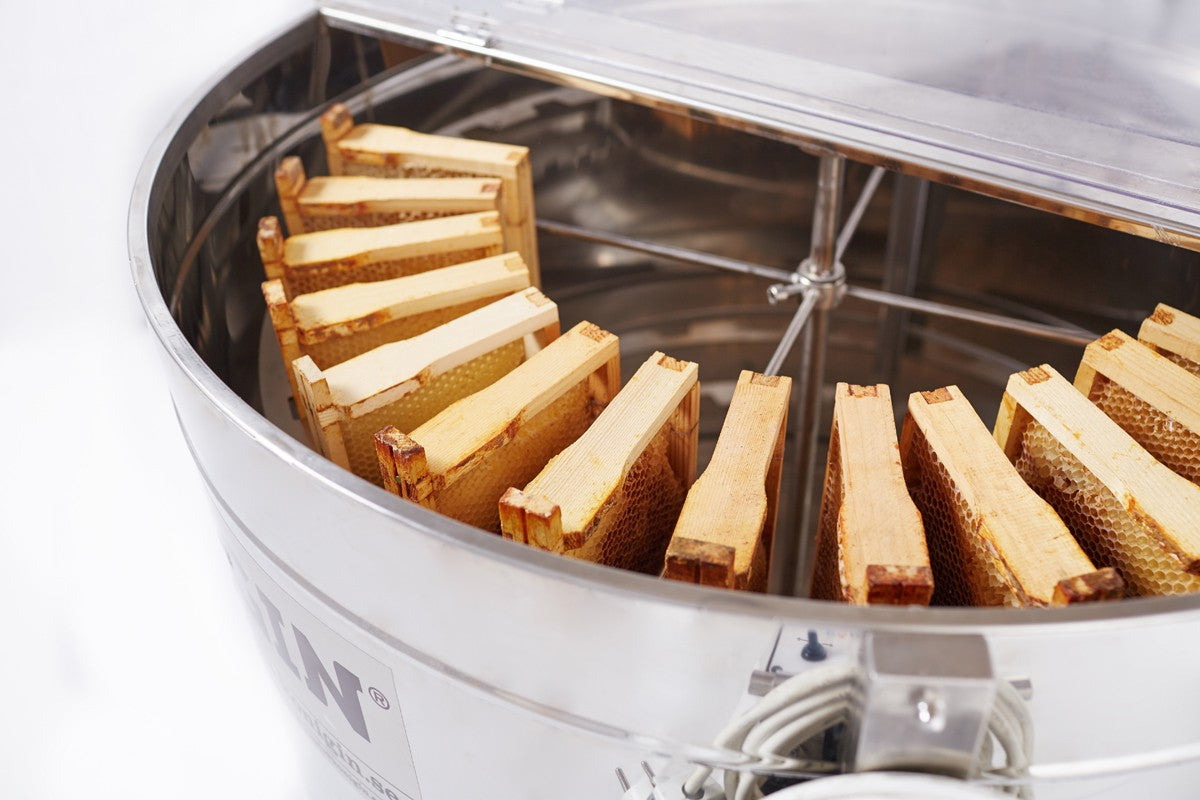

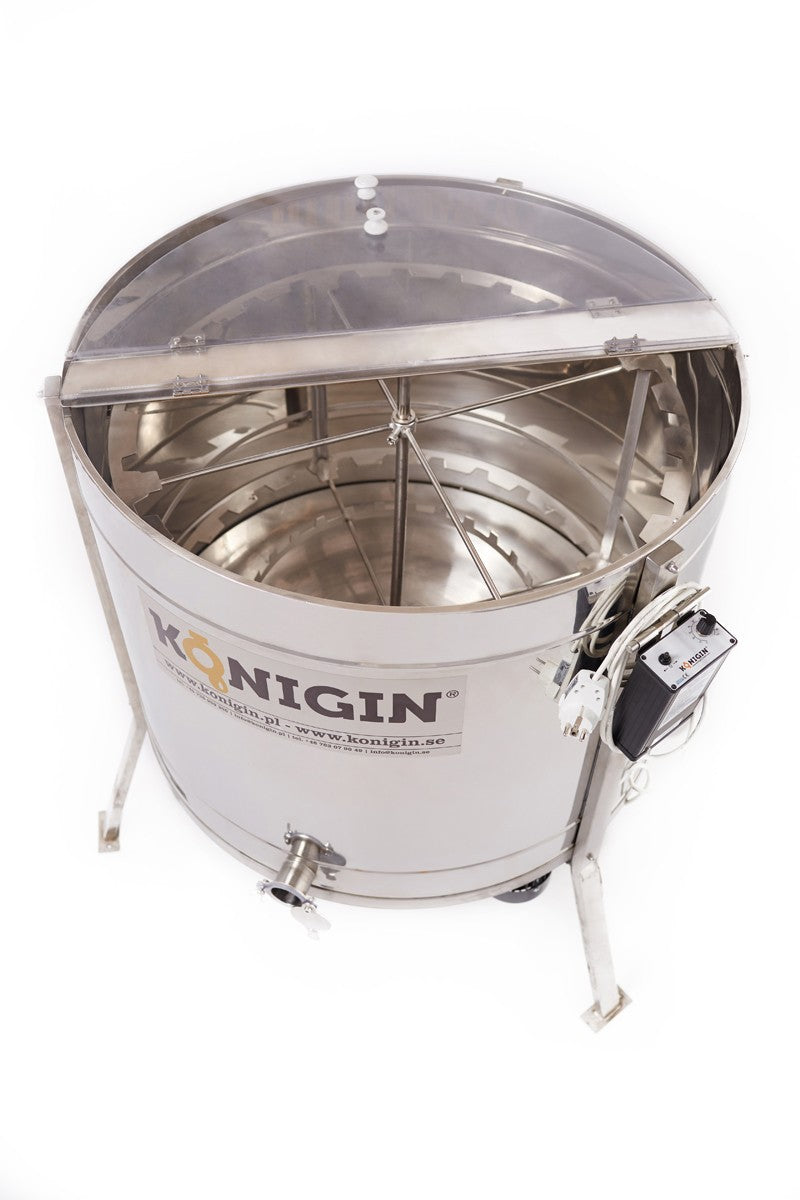

This 20 frame radial extractor features all stainless steel construction and electric drive.  Its suitable for full depth frames.

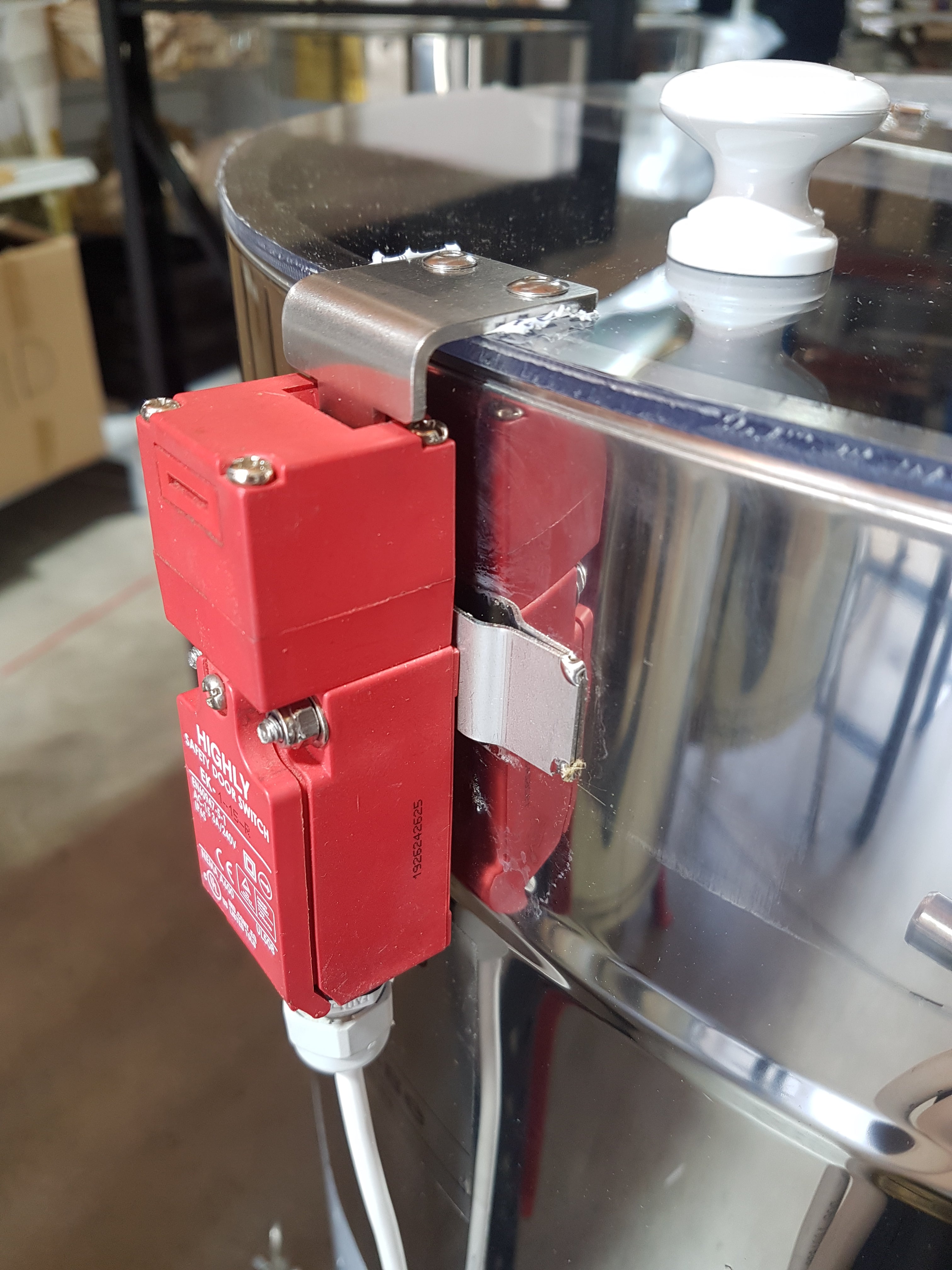

These units have a bottom mount motor, lid interlock and a fully automatic controller with manual mode.

TECHNICAL DATA

DATA SHEET

Honey frame type Langstroth full depth
Size of drum Ø820 mm
Height 110 cm
Height to bottom of honey gate 370 mm
Weight 40kg
Made of Stainless steel. The machine is made entirely of stainless materials. The most commonly used corrosion-resistant material with the symbol 1.4301 / AISI 304

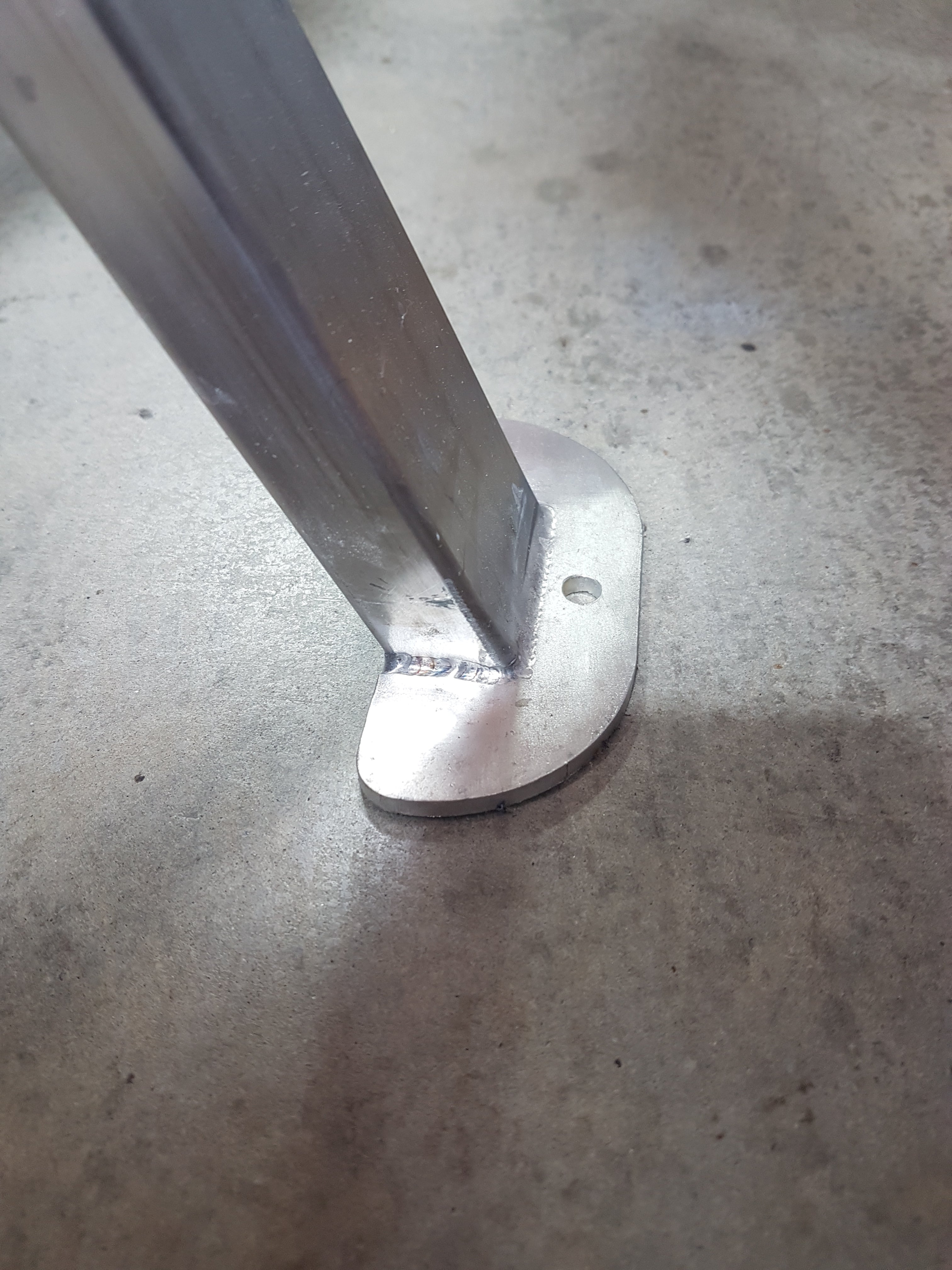

Stand Stainless steel
Hinges Stainless steel
Drum 0.8mm thick, stainless steel acid-resistant.
Basket Frames available to turn into a tangential extractor.

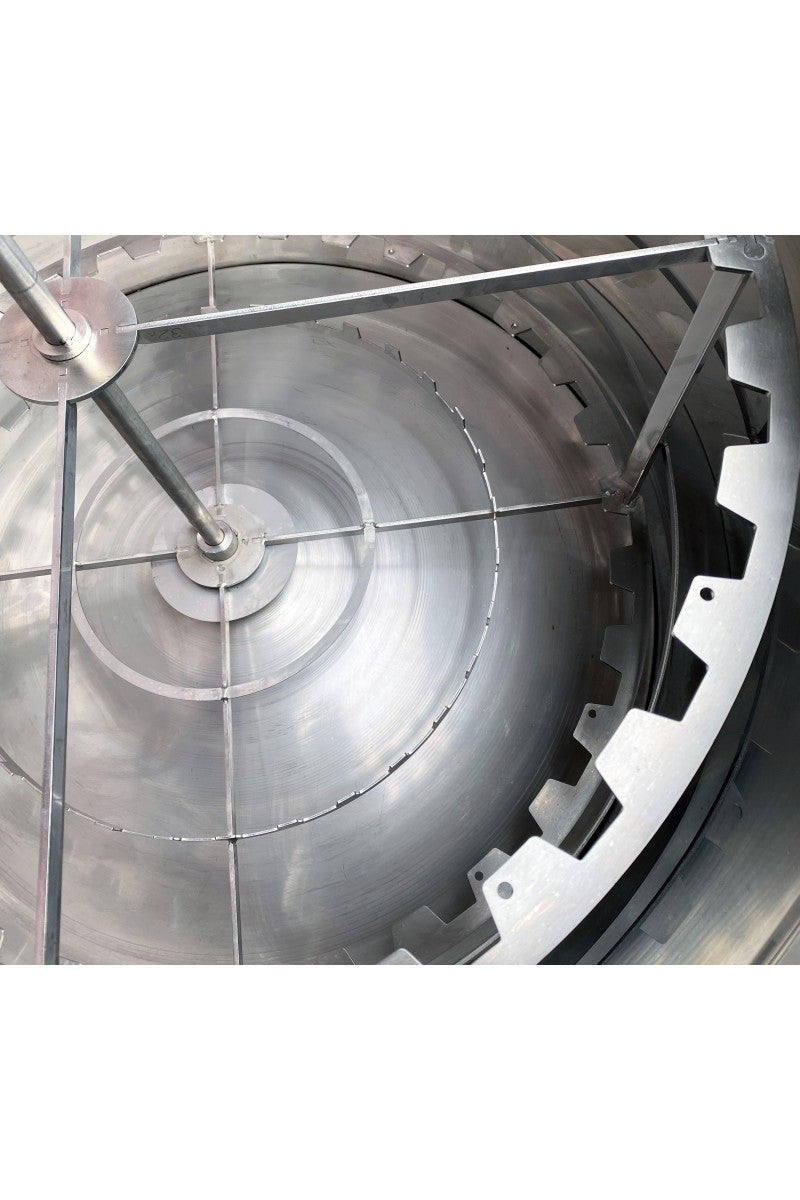

Bottom Bottom is conical, made of acid resistant stainless steel, 1mm thick.
Lid Lid made of polycarbonate.
Motor and drive Electric motor, bottom drive.
Drive 230V, emergency stop
Power consumption 250W
Motor rotations per minute 2.780
Honey basket rotations per minute Max. 400

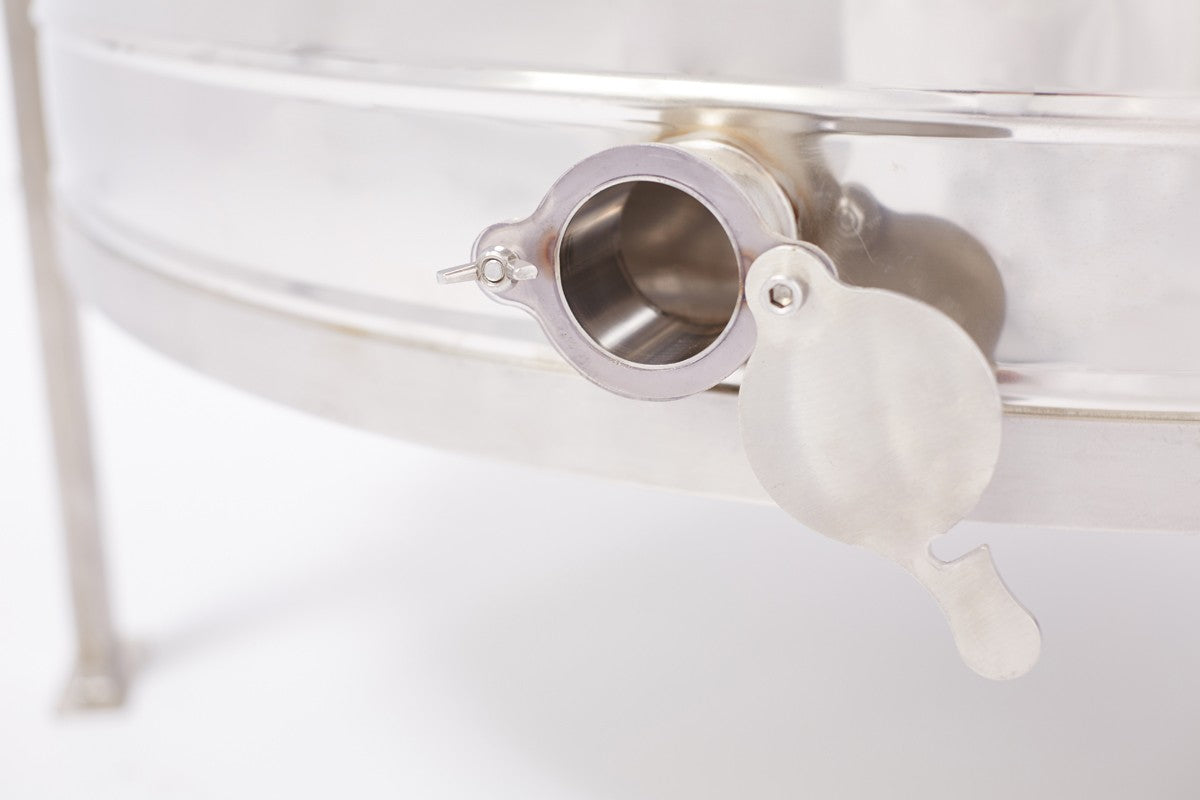

Honey extractor valve Stainless steel 5/4

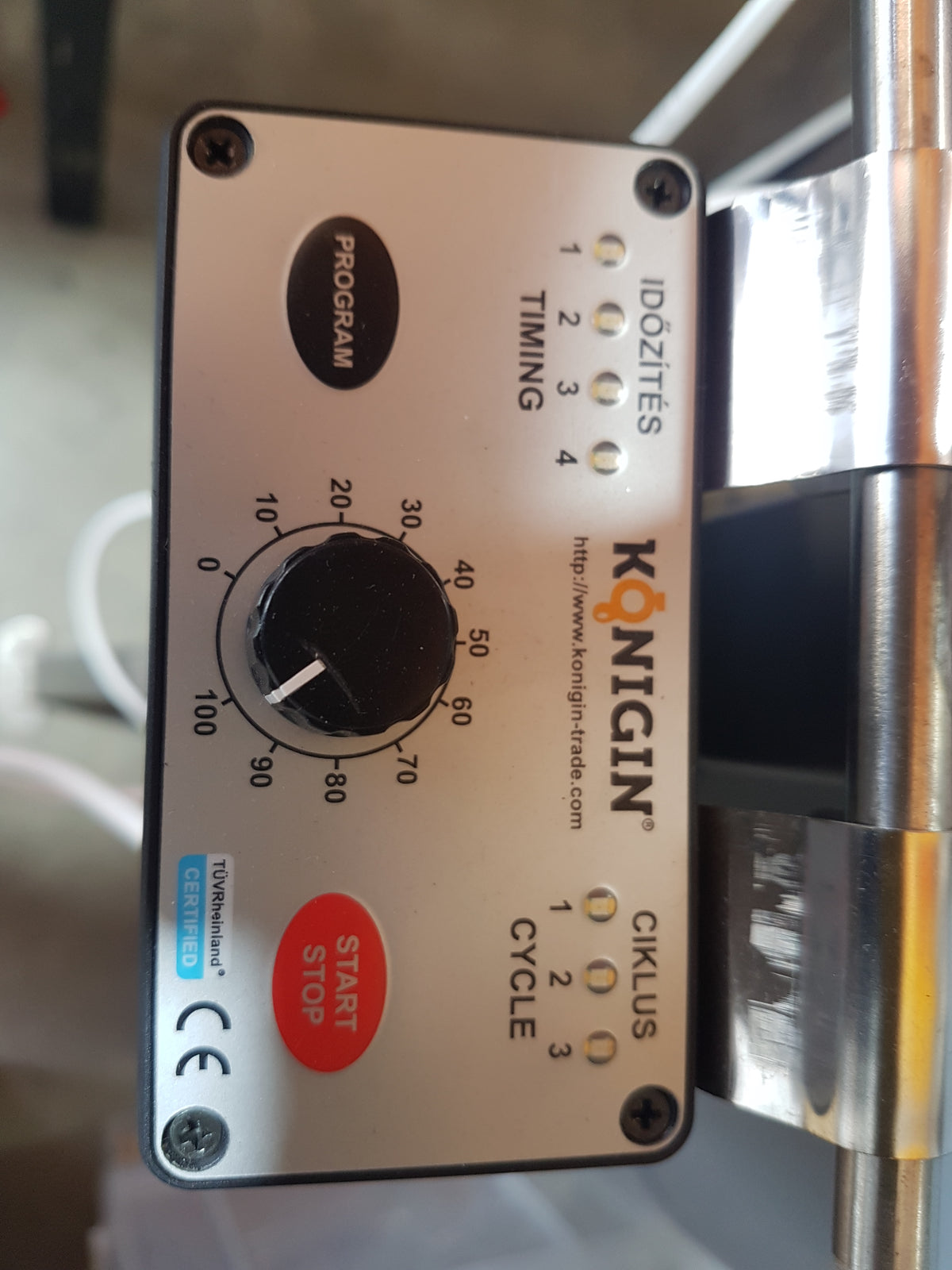

Controller Controller (direction left and right) operated manually speed controller with automatic modes.
Guarantee 2 years
Shipment Pallet shipping 100.00 x 120.00 x 120.00 cm @ 45.00 kg
