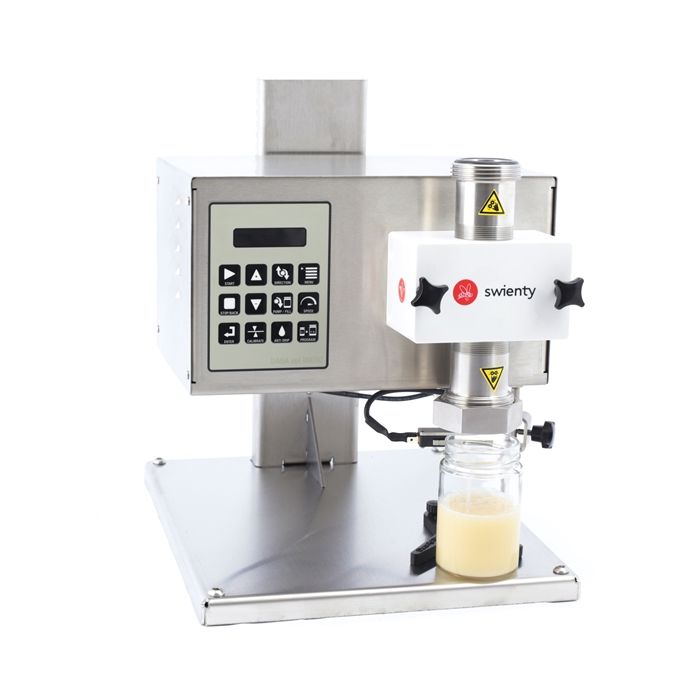

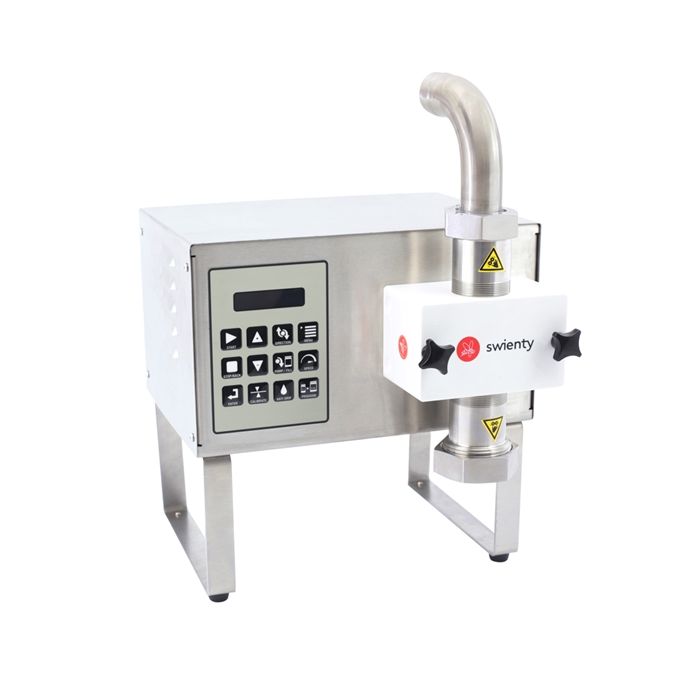

Swienty Dana Matic 1000 Filling Machine

The beginner model from Swienty

• The DANA Api MATIC 1000 is a filling machine with a gear pump.
• A strong low voltage DC motor drives the gear pump with the help of a helical gear box.
• The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function.
• The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters.
• The machine works precisely and is easy to program for different substances.
• As a pump, the machine works both ways and can be set to different speeds.
• All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean.
• When the machine is standing on the legs, you can use jars up to 105 mm in height.

Fittings Included:

• 110075 Foot pedal
• 110059 Counterflow valve
• 115815 Dosing syringe 0-60 ml
• 500110F Nut for BS fitting 1½"
• 110065C Complete cut-off-cross ø20
• 110046 Legs
• 110165 1½" / 38mm hose
• 110110A 1½" bent BS fitting
• 110175 1½" Hoseclamp

With the machine you recieve spare parts set containing:

• 2 x 110065D Cross-cut Ø20
• 2 x 110072 Black rubber diaphragm
• 2 x 500212 Gasket BS 1½
• 2 x 502740 Handmountable nuts for pumphead
• 2 x 508037 O-ring 37x2 NBR 70
• 1 x 508082 O-ring 82x2 NBR 70

Various nozzles, fittings, 10 liter funnel, table- and floor stand and switch can be purchased.
